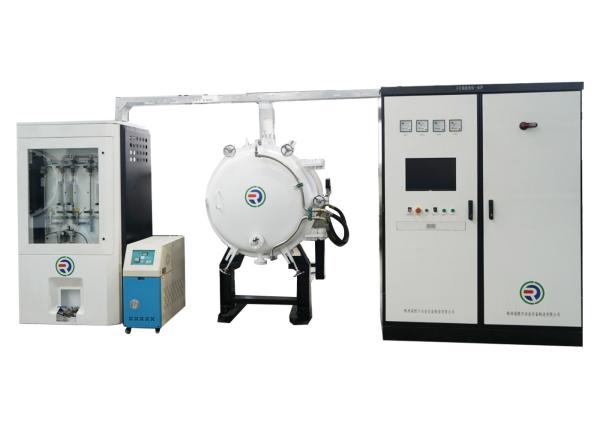

Compact Structure MIM Sintering Furnace Temperature Control Mode 2 Zone

Compact Structure MIM Sintering Furnace Temperature Control Mode 2 Zone


Description:
Metal injection molding (MIM) is a metalworking process by which finely-powdered metal is mixed with a measured amount of binder material to comprise a "feedstock" capable of being handled by plastic processing equipment through a process known as injection mold forming.

Vacuum pump: backing pump, Roots-type pump(slide valve pump, rotary vane pump, screw pump and so on can be selected for the backing pump, allowing customers to choose world-class brand products)

Power supply: General standard is three phase five wire system AC380V±10% 50HZ.
Control power supply: Single-phase AC210V-250V 50HZ design(Different countries and regions can be designed according to local grid standards)

Temperature measurement mode: WRe5-26 thermocouple

Applications: It can sinering stainless steel, iron - based, copper - based alloy, aluminum products and other precision parts. For example, the card slot and card support of mobile phone and mobile phone shell frame,Glasses foot hinge,Medical instruments (scalpel, forceps), precision handicraft.

Technical parameters:

Competitive Advantage:
1. Compact structure ,small occupation area, low energy consumption, rapid cooling speed, saving energy and protecting environment.
2. Program has resume-heat-at-breakpoint function, no need to restart the program in case of short time power failure.
3. Slot type loading space,Precision parts are heated evenly during sintering without deformation.
4. Convenient and intelligent: The control interface of sintering furnace can be monitored by mobile phone, control and understand the running state of the equipment anytime and anywhere. Fully automatic one-key operation function, realize the supervision of multiple devices by one person, intelligent production, and docking ERP management system.
5. Complete after-sales service system: Provides 7 x 24 hour telephone hotline.Propose solutions within 2 hours after receiving the customer's fault notice. With 15 experienced professional after-sales service staff, not only responsible for the company's product installation and debugging, but also for the need of users to complete the domestic and foreign manufacturers of sintering furnace after-sales and maintenance work.
6. Convenient service: If the customer has the demand may carry on the sintering product test in the Ruideer company site, and the company production site has the hot state pressure condition.
7. Quick installation: The installation can be completed and put into production within 15 days when water, electricity and gas are in place.

debinding sintering furnace

mim furnace

Compact Structure MIM Sintering Furnace Temperature Control Mode 2 Zone Images
